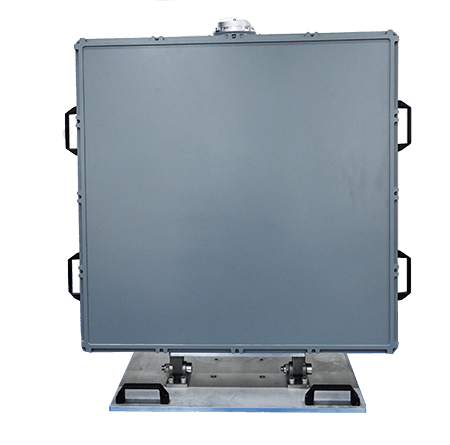

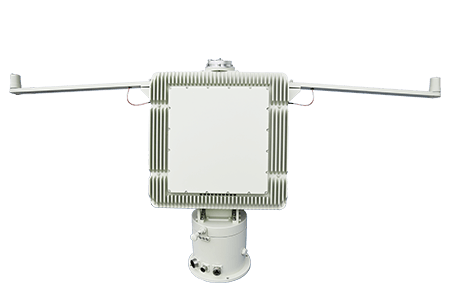

YFR-04 is a pulsed Doppler system three-coordinate radar with two-dimensional phase scanning system,which is mainly used for complex urban environment detection and individual battlefield surveillance.
Detect and locate the low-altitude aircraft.
|
Technical specifications |
YFR-04B |
|
|
Radar band |
X |
|
|
Technology system |
Linear frequency modulation pulse |
|
|
Scanning method |
Azimuth Mechanical Scanning + Elevation Phase Scanning |
|
|
Detection distance |
Typical target:DJl Phantom 4 |
≥5km |
|
Coverage area |
Azimuth angle |
±45° |
|
Elevation angle |
0°~50° |
|
|
Detection accuracy |
Distance |
≤10m |
|
Azimuth angle |
≤0.5° |
|
|
Elevation angle |
≤0.5° |
|
|
Data rate |
3s/0.5s |
|
|
Target capacity |
≥500 block/4 block |
|
|
Weight |
≤16Kg |
|
|
Size |
≤400x150x400(mm) |
|
|
Power consumption |
≤400W |
|
|
Installation method |
Fixed type,vehicle-mounted type,portable type,airborne type |
|
| Technical specifications | YFR-04C | |
| Radar band | X | |
| Technology system | Linear frequency modulation pulse | |
| Scanning method |
Azimuth Mechanical Scanning + Elevation Phase Scanning
|
|
| Detection distance | Typical target:DJl Phantom 4 | ≥7km |
| Coverage area | Azimuth angle |
±45°
|
| Elevation angle | 0°~50° | |
|
Detection accuracy |
Distance | ≤10m |
| Azimuth angle | ≤0.4° | |
| Elevation angle | ≤0.4° | |
| Data rate |
3s/0.5s |
|
| Target capacity |
≥500 block/4 block |
|
| Weight | ≤25Kg | |
| Size | ≤550x150x550(mm) | |
| Power consumption | ≤700W | |
| Installation method | Fixed type,vehicle-mounted type,portable type | |
| Technical specifications | YFR-04C-Ku | |
| Radar band | Ku | |
| Technology system | Linear frequency modulation pulse | |
| Scanning method | Azimuth Mechanical Scanning + Elevation Phase Scanning | |
| Detection distance | Typical target:DJl Phantom 4 | ≥5km |
| Coverage area | Azimuth angle | ±45° |
| Elevation angle | 0°~50° | |
|
Detection accuracy |
Distance | ≤8m |
| Azimuth angle | ≤0.4° | |
| Elevation angle | ≤0.4° | |
| Data rate |
3s/0.5s |
|
| Target capacity |
≥500 block/4 block |
|
| Weight | ≤22Kg | |
| Size | ≤450x130x510(mm) | |
| Power consumption | ≤700W | |
| Installation method | Fixed type,vehicle-mounted type,portable type | |
| Technical specifications | YFR-04D | |
| Radar band | X | |
| Technology system | Linear frequency modulation pulse | |
| Scanning method | Azimuth Mechanical Scanning + Elevation Phase Scanning | |
| Detection distance | Typical target:DJl Phantom 4 | ≥10km |
| Coverage area | Azimuth angle | ±45° |
| Elevation angle | 0°~50° | |
|
Detection accuracy |
Distance | ≤10m |
| Azimuth angle | ≤0.3° | |
| Elevation angle | ≤0.3° | |
| Data rate |
3s/0.5s |
|
| Target capacity |
≥500 block/4 block |
|
| Weight | ≤40Kg | |
| Size | ≤650x150x650(mm) | |
| Power consumption | ≤1200W | |
| Installation method | Fixed type,vehicle-mounted type,portable type | |
